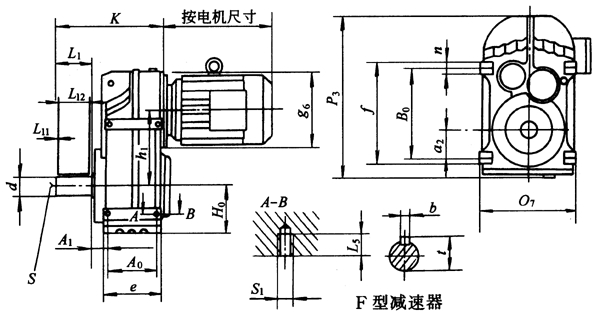

F 型減 速機 主要尺寸 /mm
|
型號 |
A0 |
a2 B0 |
e f |
g6 |
h1 A1 |
L5 n |
O7 P3 |
S1 H0 |
d |
L1 |
K |
L11 |
L12 |
t |
b |
S |
|
F37 |
77 |
31 115 |
95 135 |
120 |
112 22.5 |
11 20 |
169 250 |
M8 76 |
25k6 |
50 |
185 |
5 |
40 |
28 |
8 |
M10 |
|
F47 |
93 |
43 145 |
109 165 |
120 |
128.1 31 |
15 20 |
180 272 |
M10 77 |
30k6 |
60 |
225 |
3.5 |
50 |
33 |
8 |
M10 |
|
F67 |
112 |
60 190 |
131 215 |
160 |
159.5 39 |
17 25 |
217 343 |
M12 97 |
40k6 |
80 |
300 |
5 |
70 |
43 |
12 |
M16 |
|
F77 |
140 |
70 240 |
165 275 |
210 |
200 37.5 |
26 35 |
279 426 |
M16 121 |
50k6 |
100 |
350 |
10 |
80 |
53.5 |
14 |
M16 |
|
F87 |
165 |
100 310 |
195 350 |
250 |
246.7 43 |
26 40 |
330 531 |
M16 152 |
60m6 |
120 |
410 |
5 |
110 |
64 |
18 |
M20 |
|
F97 |
205 |
120 350 |
240 400 |
300 |
285 51.5 |
28 50 |
400 623 |
M20 178 |
70m6 |
140 |
490 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
F107 |
220 |
125 400 |
260 460 |
350 |
332.4 73.5 |
36 60 |
450 717 |
M24 200 |
90m6 |
170 |
570 |
5 |
160 |
95 |
25 |
M24 |
|
F127 |
270 |
142 450 |
316 520 |
450 |
382.6 83 |
45 70 |
530 856 |
M30 236 |
110m6 |
210 |
670 |
15 |
180 |
116 |
28 |
M24 |
